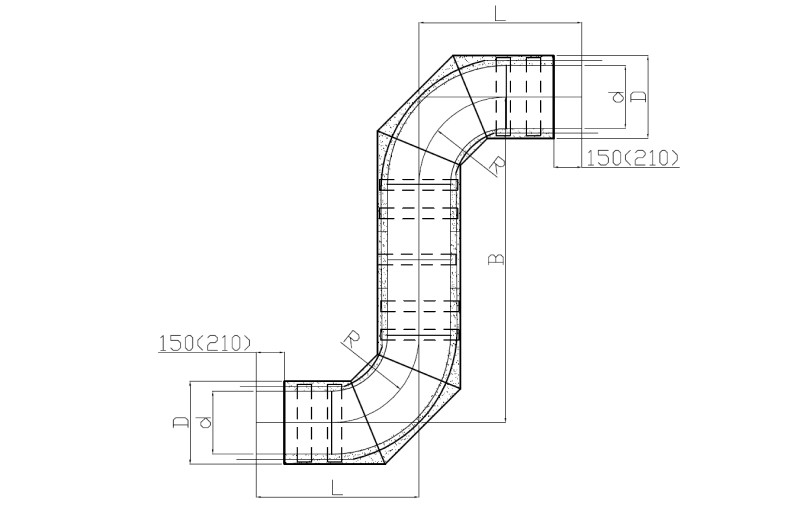

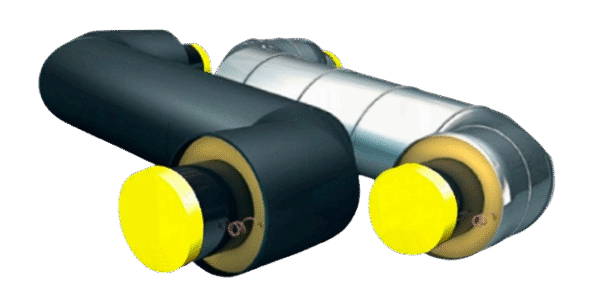

Z-shaped element 900 is a shaped product for a heating network, which functions as a compensating element in a pipeline. The product can be installed both horizontally and vertically.
|
d, мм |
Размеры стандартные |
ПЭ оболочка |
ОЦ оболочка |
||||
| Тип 1 | Тип 2 | ||||||
| L,
мм |
B,
мм |
D,
мм |
D,
Мм |
m,
кг |
D,
мм |
||
| 32 | 1000 | 2000 | 125 | – | 17 | 140 | |
| 38 | 1000 | 2000 | 125 | – | 19 | 140 | |
| 45 | 1000 | 2000 | 125 | – | 21 | 140 | |
| 57 | 1000 | 2000 | 125 | 140 | 24 | 140 | |
| 76 | 1000 | 2000 | 140 | 160 | 38 | 160 | |
| 89 | 1000 | 2000 | 160 | 180 | 45 | 180 | |
| 108 | 1000 | 2000 | 180 | 200 | 63 | 200 | |
| 133 | 1000 | 2000 | 225 | 250 | 83 | 225 | |
| 159 | 1000 | 2000 | 250 | 280 | 112 | 250 | |
| 219 | 1000 | 2000 | 315 | 355 | 197 | 315 | |
| 273 | 1000 | 2000 | 400 | 450 | 248 | 400 | |
| 325 | 1050 | 2100 | 450 | 500 | 333 | 450 | |
| 426 | 1100 | 2200 | 560 | 630 | 489 | 560 | |
| 530 | 1200 | 2400 | 710 | – | 805 | 675 | |
| 630 | 1280 | 2560 | 800 | – | 969 | 775 | |
| 720 | 1370 | 2740 | 900 | – | 1252 | 875 | |
| 820 | 1470 | 2940 | 1000 | 1100 | 1269 | 975 | |
| 920 | 1570 | 3140 | 1100 | 1200 | 1518 | 1075 | |
| 1020 | 1620 | 3240 | 1200 | – | 2289 | 1175 | |
Example of a symbol in an order specification:
Z-shaped element 90˚ with an outside diameter of 530 mm, a wall thickness of 7 mm, with insulation of type 1 made of polyurethane foam in a polyethylene shell:
Z-shaped element St530x7-90˚-1-PPU-PE
Z-shaped element 90˚ with an outside diameter of 530 mm, a wall thickness of 7 mm, with insulation made of polyurethane foam in a galvanized shell: Z-shaped element St530x7-90˚-PPU-OC
