Tee

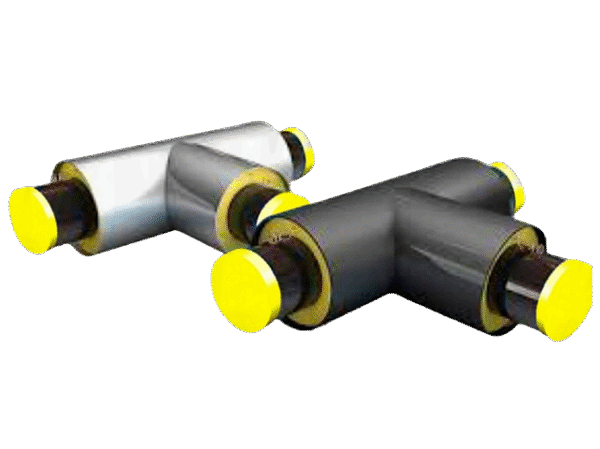

PPU tees are branching elements of the pipeline. Tees are produced in two main types – equal-bore and transitional. In the first case, the diameter of the branch and the main pipe are equal, in the second – the branch is of a smaller diameter.

d, мм	d1, мм	ПЭ оболочка						ОЦ оболочка		Высота	Длина основной трубы
		Тип 1		Тип 2				ОЦ оболочка		Высота	Длина основной трубы
		D, мм	D1, мм	D, мм	D1, мм		m, кг	D, мм	D1, мм	Н мм	L, мм
32	32	125	125	–	–		8	140	140	700	1200
38	32	125	125	–	–		9	140	140	700	1200
38	38	125	125	–	–		10	140	140	700	1200
45	32	125	125	–	–		10	140	140	700	1200
45	38	125	125	–	–		11	140	140	700	1200
45	45	125	125	–	–		11	140	140	700	1200
57	32	125	125	140	–		11	140	140	700	1200
57	38	125	125	125	–		12	140	140	700	1200
57	45	125	125	125	–		13	140	140	700	1200
57	57	125	125	140	140		14	140	140	700	1200
76	32	140	125	160	–		14	160	140	700	1300
76	38	140	125	160	–		14	160	140	700	1300
76	45	140	125	160	–		15	160	140	700	1300
76	57	140	125	160	140		16	160	140	700	1300
76	76	140	140	160	160		19	160	160	700	1300
89	32	160	125	180	–		18	180	140	700	1300
89	38	160	125	180	–		18	180	140	700	1300
89	45	160	125	180	–		19	180	140	700	1300
89	57	160	125	180	140		19	180	140	700	1300
89	76	160	140	180	160		22	180	160	700	1300
89	89	160	160	180	180		24	180	180	700	1300
108	32	180	125	200	–		20	200	140	700	1300
108	38	180	125	200	–		21	200	140	700	1300
108	45	180	125	200	–		21	200	140	700	1300
108	57	180	125 125	200	140		22	200	140	700	1300
108	76	180	140 140	200	160		24	200	160	700	1300
108	89	180	160 160	200	180		26	200	180	700	1300
108	108	180	180 180	200	200		28	200	200	700	1300
133	32	225	125 125	250	–		30	225	140	700	1300
133	38	225	125 125	250	–		30	225	140	700	1300
133	45	225	125 125	250	–		31	225	140	700	1300
133	57	225	125	250	140		31	225	140	700	1300
133	76	225	140	250	160		45	225	160	700	1300
133	89	225	160	250	180		35	225	180	700	1300
133	108	225	180	250	200		36	225	200	700	1300
133	133	225	225	250	250		44	225	225	700	1300
159	32	250	125	280	–		35	250	140	700	1400
159	38	250	125	280	–		35	250	140	700	1400
159	45	250	125	280	–		37	250	140	700	1400
159	57	250	125	280	140		38	250	140	700	1400
159	76	250	140	280	160		39	250	160	700	1400
159	89	250	160	280	180		40	250	180	700	1400
159	108	250	180	280	200		42	250	200	700	1400
159	133	250	225	280	250		47	250	225	700	1400
159	159	250	250	280	280		50	250	250	700	1400
219	32	315	125	355	–		59	315	140	700	1400
219	38	315	125	355	–		59	315	140	700	1400
219	45	315	125	355	–		59	315	140	700	1400
219	57	315	125	355	140		60	315	140	700	1400
219	76	315	140	355	160		62	315	160	700	1400
219	89	315	160	355	180		64	315	180	700	1400
219	108	315	180	355	200		65	315	200	700	1400
219	133	315	225	355	250		70	315	225	700	1400
219	159	315	250	355	280		72	315	250	700	1400
219	219	315	315	355	355		105	315	315	700	1400
273	32	400	125	450	–		109	400	140	900	1800
273	38	400 125	125	450	–		109	400	140	900	1800
273	45	400 125	125	450	–		110	400	140	900	1800
273	57	400 125	125	450	140		111	400	140	900	1800
273	76	400 140	140	450	160		112	400	160	900	1800
273	89	400 160	160	450	180		115	400	180	900	1800
273	108	400 180	180	450	200		117	400	200	900	1800
273	133	400 225	225	450	250		122	400	225	900	1800
273	159	400 250	250	450	280		126	400	250	900	1800
273	219	400 315	315	450	355		142	400	315	900	1800
273	273	400 400	400	450	450		160	400	400	900	1800
325	32	450 125	125	500	–		143	450	140	900	1800
325	38	450 125	125	500	–		144	450	140	900	1800
325	45	450 125	125	500	–		145	450	140	900	1800
325	57	450 125	125	500	140		146	450	140	900	1800
325	76	450 140	140	500	160		148	450	160	900	1800
325	89	450 160	160	500	180		150	450	180	900	1800
325	108	450 180	180	500		200	152	450	200	900	1800
325	133	450 225	225	500	250		157	450	225	900	1800
325	159	450 250	250	500	280		160	450	250	900	1800
325	219	450 315	315	500	355		176	450	3150	900	1800
325	273	450 400	400	500	450		192	450	400	900	1800
325	325	450 450	450	500	500		221	450	450	900	1800
426	32	560 125	125	630	–		205	560	140	1000	1900
426	38	560 125	125	630	–		206	560	140	1000	1900
426	45	560 125	125	630	–		207	560	140	1000	1900
426	57	560 125	125	630	140		208	560	140	1000	1900
426	76	560 140	140	630	160		210	560	160	1000	1900
426	89	560 160	160	630	180		223	560	180	1000	1900
426	108	560 180	180	630	200		215	560	200	1000	1900
426	133	560 225	225	630	250		220	560	225	1000	1900
426	159	560 250	250	630	280		224	560	250	1000	1900
426	219	560 315	315	630	355		241	560	315	1000	1900
426	273	560 400	400	630	450		257	560	400	1000	1900
426	325	560 450	450	630	500		275	560	450	1000	1900
426	426	560 560	560	630	630		320	560	560	1000	1900
530	32	710 125	125	–	–		263	675	140	1000	2000
530	38	710 125	125	–	–		264	675	140	1000	2000
530	45	710 125	125	–	–		265	675	140	1000	2000
530	57	710 125	125	–	140		266	675	140	1000	2000
530	76	710 140	140	–	160		268	675	160	1000	2000
530	89	710 160	160	–	180		270	675	180	1000	2000
530	108	710 180	180	–	200		272	675	200	1000	2000
530	133	710 225	225	–	250		278	675	225	1000	2000
530	159	710 250	250	–	280		281	675	250	1000	2000
530	219	710 315	315	–	355		298	675	315	1000	2000
530	273	710 400	400	–	450		314	675	400	1000	2000
530	325	710 450	450	–	500		331	675	450	1000	2000
530	426	710 560	560	–	630		358	675	560	1000	2000
530	530	710 710	710	–	–		382	675	675	1000	2000
630	32	800 125	125	–	–		312	775	140	1000	2000
630	38	800 125	125	–	–		313	775	140	1000	2000
630	45	800 125	125	–	–		314	775	140	1000	2000
630	57	800 125	125	–	140		315	775	140	1000	2000
630	76	800 140	140	–	160		317	775	160	1000	2000
630	89	800 160	160	–	180		319	775	180	1000	2000
630	108	800 180	180	–	200		322	775	200	1000	2000
630	133	800 225	225	–	250		327	775	225	1000	2000
630	159	800 250	250	–	280		330	775	250	1000	2000
630	219	800 315	315	–	355		347	775	315	1000	2000
630	273	800 400	400	–	450		362	775	400	1000	2000
630	325	800	450	–	500		378	775	450	1000	2000
630	426	800 560	560	–	630		403	775	560	1000	2000
630	530	800 710	710	–	–		427	775	675	1000	2000
630	630	800 800	800	–	–		471	775	775	1000	2000
720	32	900 125	125	–	–		363	875	140	1100	2000
720	38	900 125	125	–	–		364	875	140	1100	2000
720	45	900 125	125	–	–		365	875	140	1100	2000
720	57	900 125	125	–	140		366	875	140	1100	2000
720	76	900 140	140	–	160		368	875	160	1100	2000
720	89	900 160	160	–	180		370	875	180	1100	2000
720	108	900 180	180	–	200		373	875	2000	1100	2000
720	133	900 225	225	–	250		379	875	225	1100	2000
720	159	900 250	250	–	280		382	875	250	1100	2000
720	219	900 315	315	–	355		400	875	315	1100	2000
720	273	900 400	400	–	450		417	875	400	1100	2000
720	325	900 450	450	–	500		435	875	450	1100	2000
720	426	900 560	560	–	630		460	875	560	1100	2000
720	530	900 710	710	–	–		485	875	675	1100	2000
720	630	900 800	800	–	–		517	875	775	1100	2000
720	720	900 900	900	–	–		561	875	875	1100	2000
820	32	1000 125	125	1100	–		493	975	140	1200	2000
820	38	1000 125	125	1100	–		493	975	140	1200	2000
820	45	1000 125	125	1100	–		494	975	140	1200	2000
820	57	1000 125	125	1100	140		495	975	140	1200	2000
820	76	1000 140	140	1100	160		498	975	160	1200	2000
820	89	1000 160	160	1100	180		501	975	180	1200	2000
820	108	1000 180	180	1100	200		504	975	200	1200	2000
820	133	1000 225	225	1100	250		510	975	225	1200	2000
820	159	1000 250	250	1100	280		514	975	250	1200	2000
820	219	1000 315	315	1100	355		534	975	315	1200	2000
820	273	1000 400	400	1100	450		552	975	400	1200	2000
820	325	1000 450	450	1100	500		569	975	450	1200	2000
820	426	1000 560	560	1100	630		596	975	560	1200	2000
820	530	1000 710	710	1100	–		622	975	675	1200	2000
820	630	1000 800	800	1100	–		644	975	775	1200	2000
820	720	1000 900	900	1100	–		654	975	875	1200	2000
820	820	1000 1000	1000	1100	1100		839	975	975	1200	2000
920	32	1100 125	125	1200	–		542	975	140	1200	2100
920	38	1100 125	125	1200	–		542	1075	140	1200	2100
920	45	1100 125	125	1200	–		544	1075	140	1200	2100
920	57	1100 125	125	1200	140		545	1075	140	1200	2100
920	76	1100 140	140	1200	160		548	1075	160	1200	2100
920	89	1100 160	160	1200	180		550	1075	180	1200	2100
920	108	1100 180	180	1200	200		553	1075	200	1200	2100
920	133	1100 225	225	1200	250		559	1075	225	1200	2100
920	159	1100 250	250	1200	280		563	1075	250	1200	2100
920	219	1100 315	315	1200	355		582	1075	315	1200	2100
920	273	1100 400	400	1200	450		600	1075	400	1200	2100
920	325	1100 450	450	1200	500		618	1075	450	1200	2100
920	426	1100 560	560	1200	630		644	1075	560	1200	2100
920	530	1100 710	710	1200	–		670	1075	675	1200	2100
920	630	1100 800	800	1200	–		690	1075	775	1200	2100
920	720	1100 900	900	1200	–		691	1075	875	1200	2100
920	820	1100 1000	1000	1200	1100		767	1075	975	1200	2100
920	920	1100 1100	1100	1200	1200		880	1075	1075	1200	2100
1020	32	1200 125	125	–	–		957	1175	140	1300	2100
1020	38	1200 125	125	–	–		957	1175	140	1300	2100
1020	45	1200 125	125	–	–		958	1175	140	1300	2100
1020	57	1200 125	125	–	140		959	1175	140	1300	2100
1020	76	1200 140	140	–	160		962	1175	160	1300	2100
1020	89	1200 160	160	–	180		966	1175	180	1300	2100
1020	108	1200 180	180	–	200		968	1175	200	1300	2100
1020	133	1200 225	225	–	250		974	1175	225	1300	2100
1020	159	1200 250	250	–	280		978	1175	250	1300	2100
1020	219	1200 315	315	–	355		1000	1175	315	1300	2100
1020	273	1200 400	400	–	450		990	1175	400	1300	2100
1020	325	1200 450	450	–	500		1039	1175	450	1300	2100
1020	426	1200 560	560	–	630		1068	1175	560	1300	2100
1020	530	1200 710	710	–	–		1094	1175	675	1300	2100
1020	630	1200 800	800	–	–		1115	1175	775	1300	2100
1020	720	1200 900	900	–	–		1104	1175	875	1300	2100
1020	820	1200 1000	1000	–	1100		1168	1175	975	1300	2100
1020	920	1200 1100	1100	–	1200		1216	1175	1075	1300	2100
1020	1020	1200 1200	1200	–	–		1602	1175	1175	1300	2100

Example of a symbol in an order specification:

Tee with an outside diameter of the main pipe of 426 mm, a wall thickness of 7 mm and a branch pipe diameter of 76 mm, a wall thickness of 3.5 mm, with type 1 insulation made of polyurethane foam in a polyethylene shell: Tee St426x7-76×3.5-1-PPU-PE

Tee with an outside diameter of the main pipe of 426 mm, a wall thickness of 7 mm and a branch pipe diameter of 76 mm, a wall thickness of 3.5 mm, with polyurethane foam insulation in a galvanized shell: Tee St426x7-76×3.5-PPU-OC
