The end element of the pipeline with MZI and end cable output is designed to connect copper conductors laid in a heat-insulating layer of polyurethane foam along the entire length of a certain section of a pre-insulated pipeline to the end terminals of the operational remote control system. It is installed in thermal chambers with limited space.
Example of a symbol in a custom specification:

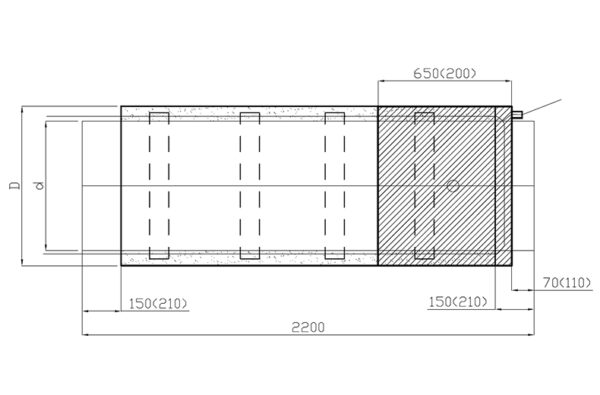

End element of a pipeline with an outside diameter of 530 mm, a wall thickness of 7 mm, with
Type 1 insulation made of polyurethane foam in a polyethylene (galvanized) sheath, with a metal insulation plug 650 (200) mm long and an end cable output:
End element of a pipeline St530x7-1-PPU-PE-650 with a metal insulation plug and an end cable output
End element of a pipeline St530x7-PPU-OC-200 with a metal insulation plug and an end cable output
Note:
The distance from the end of the pipe to the metal insulation plug is 70 mm for diameters up to and including 219 mm, 110 mm for pipes of other diameters.
