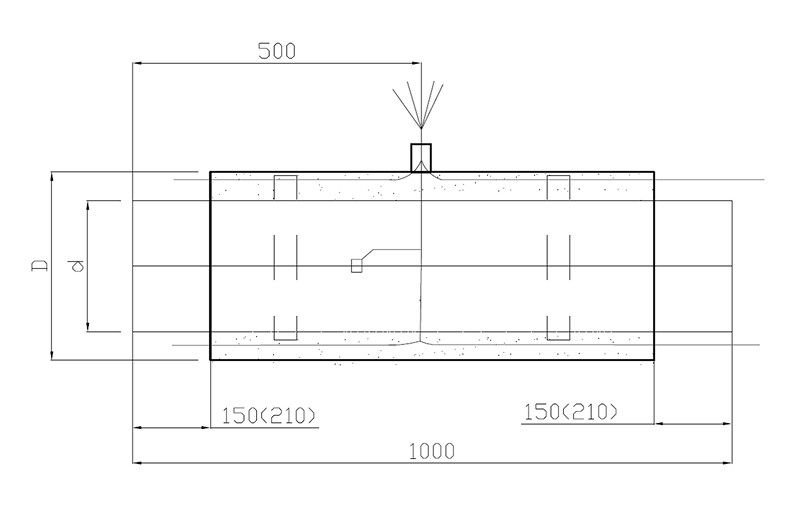

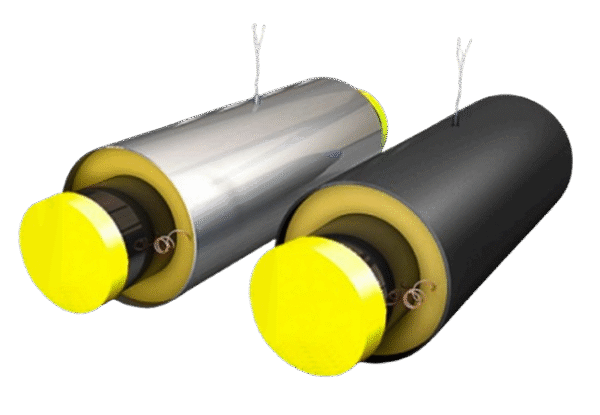

A pipeline element with an output cable in polyurethane foam insulation is an integral part of the pipeline and the operational remote control system (ORC) and serves to connect this element to the intermediate switching terminal with a 5-core output cable.
|
d, мм |
ПЭ оболочка |
ОЦ оболочка |
||
| Тип 1 | Тип 2 | |||
| D,
мм |
D,
мм |
m,
кг |
D,
мм |
|
| 32 | 125 | – | 5 | 140 |
| 38 | 125 | – | 5 | 140 |
| 45 | 125 | – | 6 | 140 |
| 57 | 125 | 140 | 7 | 140 |
| 76 | 140 | 160 | 9 | 160 |
| 89 | 160 | 180 | 11 | 180 |
| 108 | 180 | 200 | 14 | 200 |
| 133 | 225 | 250 | 18 | 225 |
| 159 | 250 | 280 | 24 | 250 |
| 219 | 315 | 355 | 43 | 315 |
| 273 | 400 | 450 | 64 | 400 |
| 325 | 450 | 500 | 77 | 450 |
| 426 | 560 | 630 | 105 | 560 |
| 530 | 710 | – | 142 | 675 |
| 630 | 800 | – | 170 | 775 |
| 720 | 900 | – | 199 | 875 |
| 820 | 1000 | 1100 | 255 | 975 |
| 920 | 1100 | 1200 | 309 | 1075 |
| 1020 | 1200 | – | 364 | 1175 |
Example of a symbol in an order specification:
Pipeline element with an output cable with an outside diameter of 325 mm, a wall thickness of
7 mm, with type 1 insulation made of polyurethane foam in a polyethylene sheath:
Pipeline element with an output cable St325x7-1-PPU-PE,
Pipeline element with an output cable with an outside diameter of 325 mm, a wall thickness of
7 mm, with polyurethane foam insulation in a galvanized sheath:
Pipeline element with an output cable St325x7-PPU-OC
