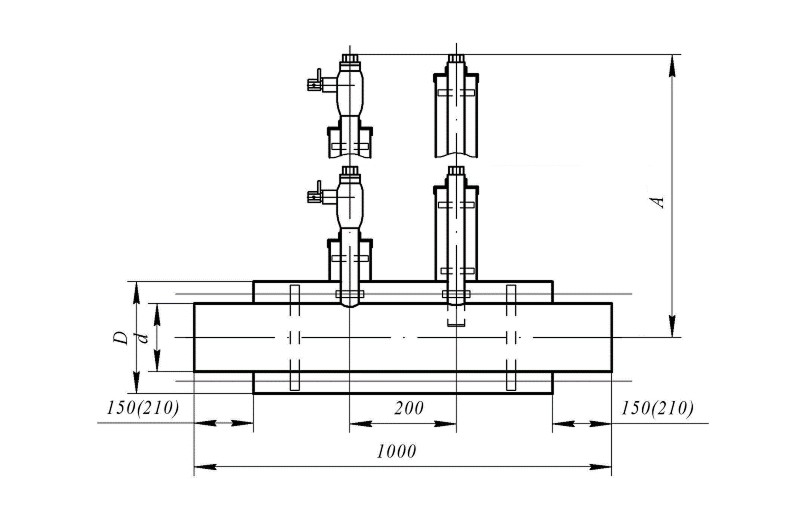

A pipeline element with a nozzle for installing pressure and temperature sensors in polyurethane foam insulation is an integral part of the pipeline and is intended for installing a pressure control sensor and temperature control sensor inside the pipeline.
|
d, мм |
DN |
ПЭ оболочка |
ОЦ оболочка |
А, мм |
||
| Тип 1 | Тип 2 | |||||
| D, мм | D, мм | m, кг | D, мм | |||
| 159 | 32 | 250 | 280 | 24 | 250 | 425 |
| 219 | 32 | 315 | 355 | 43 | 315 | 455 |
| 273 | 32 | 400 | 450 | 64 | 400 | 480 |
| 325 | 32 | 450 | 500 | 77 | 450 | 510 |
| 426 | 32 | 560 | 630 | 105 | 560 | 560 |
| 530 | 50 | 710 | – | 142 | 675 | 625 |
| 630 | 50 | 800 | – | 170 | 775 | 675 |
| 720 | 50 | 900 | – | 199 | 875 | 720 |
| 820 | 50 | 1000 | 1100 | 255 | 975 | 770 |
| 920 | 50 | 1100 | 1200 | 309 | 1075 | 820 |
| 1020 | 50 | 1200 | – | 364 | 1175 | 870 |
Example of a symbol in an order specification:
Pipeline element with a nozzle for installing pressure and temperature sensors with
outer diameter of 159 mm, wall thickness of 5 mm, with type 1 insulation made of polyurethane foam in a polyethylene shell:
Pipeline element with a nozzle for installing pressure and temperature sensors
Ст159х5-1-ППУ-PE-DT
Pipeline element with a nozzle for installing pressure and temperature sensors with
outer diameter of 159 mm, wall thickness of 5 mm, with polyurethane foam insulation in a galvanized shell:
Pipeline element with a nozzle for installing pressure and temperature sensors
Ст159х5-ППУ-ОЦ-ДТ
