Parallel tee

A parallel tee in PPU insulation is used to create a parallel branch of a pipeline.

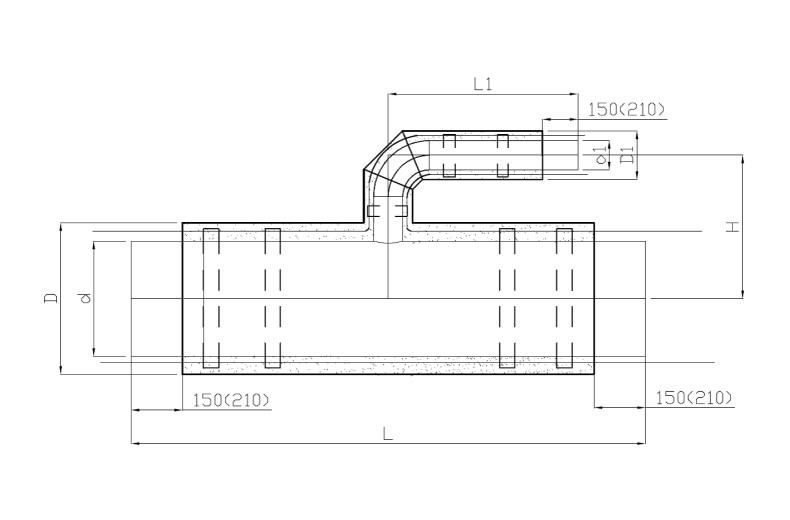

Parallel tee

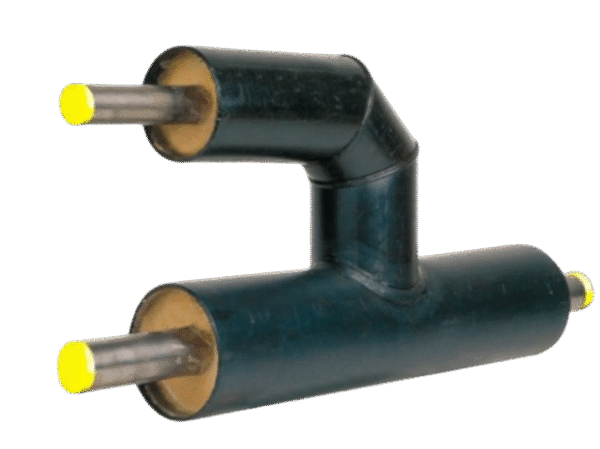

Parallel tee - Image 2




d,

мм





d1,

мм

 ПЭ оболочка          ОЦ

     оболочка

 Межосевое расстояние между трубами

Длина основной трубы



Длина трубы ответвления


Тип 1



Тип 2
D, мм D1,

мм

 D,

мм

 D1,

мм

 m,

кг

 D,

мм

 D1,

мм

 H,

мм

 L,

мм

    L1,        мм
32 32 125 125 – – 10 140 140 275   1200     700
38 32 125 125 – – 10 140 140 275   1200 700
38 38 125 125 – – 11 140 140 275   1200 700
45 32 125 125 – – 11 140 140 275 1200 700
45 38 125 125 – – 11 140 140 275 1200 700
45 45 125 125 – – 12 140 140 275 1200 700
57 32 125 125 140 – 12 140 140 283 1200 700
57 38 125 125 140 – 12 140 140 283 1200 700
57 45 125 125 140 – 14 140 140 283 1200 700
57 57 125 125 140 140 15 140 140 290 1200 700
76 32 140 125 160 – 16 160 140 293   1300 700
76 38 140 125 160 – 16 160 140 293 1300 700
76 45 140 125 160 – 17 160 140 293 1300 700
76 57 140 125 160 140 18 160 140 300 1300 700
76 76 140 140 160 160 21 160 160 310 1300 700
89 32 160 125 180 – 19 180 140 303 1300 700
89 38 160 125 180 – 19 180 140 303 1300 700
89 45 160 125 180 – 21 180 140 303 1300 700
89 57 160 125 180 140 22 180 140 310 1300 700
89 76 160 140 180 160 24 180 160 320 1300 700
89 89 160 160 180 180 27 180 180 330      1300 700
108 32 180 125 200 – 20 200 140 313  1300 700
108 38 180 125 200 – 20 200 140 313  1300 700
108 45 180 125 200 – 22 200 140 313  1300 700
108 57 180 125 200 140 23 200 140 320      1300 700
108 76 180 140 200 160 26 200 160 330      1300 700
108 89 180 160 200 180 29 200 180 340     1300 700
108 108 180 180 200 200 32    200 200 350 1300    700
133 32 225 125 250 – 30    225 140       325  1300    700
133 38 225 125 250 – 30 225 140 325      1300 700
133 45 225 125 250 – 31 225 140 325      1300 700
133 57 225 125 250 140 32 225 140 333      1300 700
133 76 225 140 250 160 35 225 160 343      1300 700
133 89 225 160 250 180 37 225 180 353      1300 700
133 108 225 180 250 200 40 225 200 363      1300 700
133 133 225 225 250 250 49 225 225 375      1300 800
159 32 250 125 280 – 36 250 140 338       1400 700
159 38 250 125 280 – 37 250 140 338       1400 700
159 45 250 125 280 – 38 250 140 338       1400 700
159 57 250 125 280 140 39 250 140 345       1400 700
159 76 250 140 280 160 41 250 160 355       1400 700
159 89 250 160 280 180 44 250 180 365       1400 700
159 108 250 180 280 200 47 250 200 375       1400 700
159 133 250 225 280 250 56 250 225 388       1400 800
159 159 250 250 280 280 60 250 250 405       1400 800
219 32 315 125 355 – 61 315 140 370       1400 700
219 38 315 125 355 – 61 315 140 370       1400 700
219 45 315 125 355 – 62 315 140 370       1400 700
219 57 315 125 355 140 63 315 140 378       1400 700
219 76 315 140 355 160 65 315 160 388       1400 700
219 89 315 160 355 180 68 315 180 398       1400 700
219 108 315 180 355 200 71 315 200 408       1400 700
219 133 315 225 355 250 80 315 225 420       1400 800
219 159 315 250 355 280 84 315 250 435       1400 800
219 219 315 315 355 355 112 315 315 565 1400 800
273 32 400 125 450 – 109 400 140 413 1800 700
273 38 400 125 450 – 110 400 140 413 1800 700
273 45 400 125 450 – 110 400 140 413 1800 700
273 57 400 125 450 140 112 400 140 420 1800 700
273 76 400 140 450 160 113 400 160 430 1800 700
273 89 400 160 450 180 117 400 180 440 1800 700
273 108 400 180 450 200 119 400 200 450 1800 700
273 133 400 225 450 250 128 400 225 463 1800 800
273 159 400 250 450 280 131 400 250 475 1800 800
273 219 400 315 450 355 155 400 315 608 1800 800
273 273 400 400 450 400 200 400 400 650 1800 1000
325 32 450 125 500 – 144 450 140 438 1800 700
325 38 450 125 500 – 145 450 140 438 1800 700
325 45 450 125 500 – 146 450 140 438 1800 700
325 57 450 125 500 140 147 450 140 445 1800 700
325 76 450 140 500 160 149 450 160 455 1800 700
325 89 450 160 500 180 152 450 180 465 1800 700
325 108 450 180 500 200 154 450 200 475 1800 700
325 133 450 225 500 250 163 450 225 488 1800 800
325 159 450 250 500 280 163 450 250 500 1800 800
325 219 450 315 500 355 186 450 315 633 1800 800
325 273 450 400 500 450 222 450 400 675 1800 1000
325 325 450 450 500 500 275 450 450 713 1800 1100
426 32 560 125 630 – 205 560 140 493 1900 700
426 38 560 125 630 – 206 560 140 493 1900 700
426 45 560 125 630 – 207 560 140 493 1900 700
426 57 560 125 630 140 208 560 140 500 1900 700
426 76 560 140 630 160 210 560 160 510 1900 700
426 89 560 160 630 180 213 560 180 520 1900 700
426 108 560 180 630 200 215 560 200 530 1900 700
426 133 560 225 630 250 224 560 225 543 1900 800
426 159 560 250 630 280 229 560 250 555 1900 800
426 219 560 315 630 355 254 560 315 688 1900 800
426 273 560 400 630 450 292 560 400 730 1900 1000
426 325 560 450 630 500 329 560 450 763 1900 1100
426 426 560 560 630 630 444 560 560 913 1900 1200
530 76 710 140 – 160 269 675 160 585 2000 700
530 89 710 160 – 180 272 675 180 595 2000 700
530 108 710 180 – 200 275 675 200 605 2000 700
530 133 710 225 – 250 283 675 225 618 2000 800
530 159 710 250 – 280 287 675 250 630 2000 800
530 219 710 315 – 355 312 675 315 763 2000 800
530 273 710 400 – 450 350 675 400 805 2000 1000
530 325 710 450 – 500 388 675 450 830 2000 1100
530 426 710 560 – 630 491 675 560 985 2000 1200
530 530 710 710 – – 614 675 675 1160 2000 1200
630 89 800 160 – 180 321 775 180 640 2000 700
630 108 800 180 – 200 324 775 200 650 2000 700
630 133 800 225 – 250 333 775 225 663 2000 800
630 159 800 250 – 280 337 775 250 675 2000 800
630 219 800 315 – 355 363 775 315 808 2000 800
630 273 800 400 – 450 401 775 400 850 2000 1000
630 325 800 450 – 500 440 775 450 875 2000 1100
630 426 800 560 – 630 514 775 560 1030 2000 1200
630 530 800 710 – – 649 775 675 1205 2000 1200
630 630 800 800 – – 752 775 775 1250 2000 1200
720 108 900 180 – 200 374 875 200 700 2000 700
720 133 900 225 – 250 383 875 225 713 2000 800
720 159 900 250 – 280 387 875 250 725 2000 800
720 219 900 315 – 355 413 875 315 858 2000 800
720 273 900 400 – 450 451 875 400 900 2000 1000
720 325 900 450 – 500 490 875 450 925 2000 1100
720 426 900 560 – 630 557 875 560 1080 2000 1200
720 530 900 710 – – 696 875 675 1255 2000 1200
720 630 900 800 – – 785 875 775 1300 2000 1200
720 720 900 900 – – 913 875 875 1500 2000 1200
820 133 1000 225 1100 250 511 975 225 763 2000 800
820 159 1000 250 1100 280 516 975 250 775 2000 800
820 219 1000 315 1100 355 540 975 315 908 2000 800
820 273 1000 400 1100 450 578 975 400 950 2000 1000
820 325 1000 450 1100 500 614 975 450 975 2000 1100
820 426 1000 560 1100 630 683 975 560 1130 2000 1200
820 530 1000 710 1100 – 743 975 675 1305 2000 1200
820 630 1000 800 1100 – 832 975 775 1350 2000 1200
820 720 1000 900 1100 – 976 975 875 1550 2000 1200
820 820 1000 1000 1100 1100 1143 975 975 1800 2000 1200
920 159 1100 250 1200 280 561 1075 250 825 2100 800
920 219 1100 315 1200 355 582 1075 315 958 2100 800
920 273 1100 400 1200 450 651 1075 400 1000 2100 1000
920 325 1100 450 1200 500 721 1075 450 1025 2100 1100
920 426 1100 560 1200 630 830 1075 560 1180 2100 1200
920 530 1100 710 1200 – 965 1075 675 1355 2100 1200
920 630 1100 800 1200 – 998 1075 775 1400 2100 1200
920 720 1100 900 1200 – 1148 1075 875 1600 2100 1200
920 820 1100 1000 1200 1100 1303 1075 975 1850 2100 1250
920 920 1100 1100 1200 1200 1721 1075 1075 2000 2100 1300
1020 219 1200 315 – 355 658 1175 315 1008 2100 800
1020 273 1200 400 – 450 736 1175 400 1050 2100 1000
1020 325 1200 450 – 500 812 1175 450 1075 2100 1100
1020 426 1200 560 – 630 913 1175 560 1230 2100 1200
1020 530 1200 710 – – 1054 1175 675 1405 2100 1200
1020 630 1200 800 – – 1090 1175 775 1450 2100 1200
1020 720 1200 900 – – 973 1175 875 1650 2100 1200
1020 820 1200 1000 – 1100 1365 1175 975 1900 2100 1200
1020 920 1200 1100 – 1200 1524 1175 1075 2050 2100 1300
1020 1020 1200 1200 – – 1688 1175 1175 2200 2100 1300



Example of a symbol in an order specification:

Parallel tee with an outside diameter of the main pipe of 426 mm, a wall thickness of 7 mm

and a branch with a diameter of 426 mm, a wall of 7 mm, with type 1 insulation made of polyurethane foam in a polyethylene shell: Parallel tee St426x7-426×7-1-PPU-PE

Parallel tee with an outside diameter of the main pipe of 426 mm, a wall thickness of 7 mm

and a branch pipe with a diameter of 426 mm, a wall thickness of 7 mm, with insulation made of polyurethane foam in a galvanized shell: Parallel tee St426x6-426×7-PPU-OC
