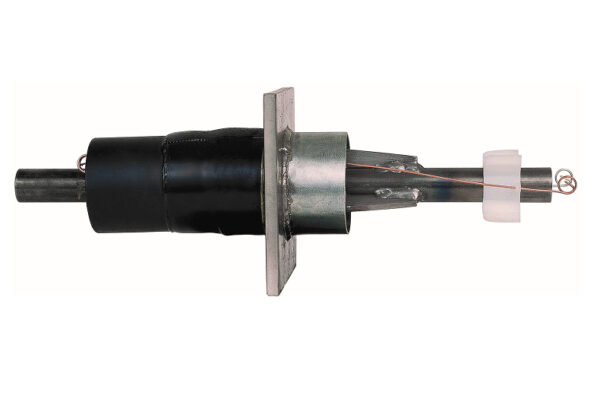

Fixed dielectric supports are used like conventional fixed supports, but differ from them by the presence of insulating plates that protect the support from the corrosive action of stray currents.
|

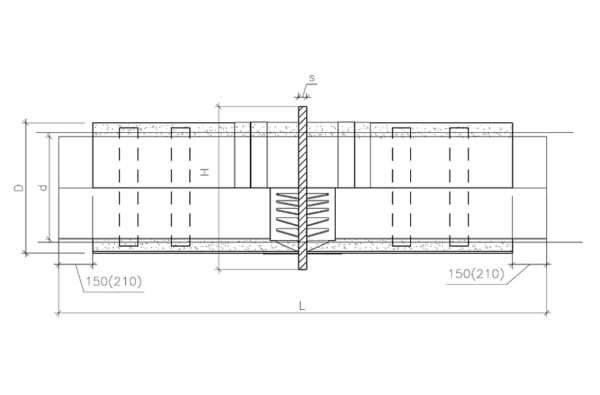

d, мм |
ПЭ оболочка |
ОЦ оболочка |
Н, мм |
S, мм |
L ПЭ, мм |
L ОЦ, мм |
P*max, тн |
||
| Тип 1 | Тип 2 | ||||||||
| D,
мм |
D,
мм |
m,
кг |
D,
мм |
||||||
| 32 | 125 | – | 33 | 140 | 255 | 16 | 2500 | 2000 | 3,6 |
| 38 | 125 | – | 34 | 140 | 255 | 16 | 2500 | 2000 | 4,2 |
| 45 | 125 | – | 35 | 140 | 255 | 16 | 2500 | 2000 | 5,0 |
| 57 | 125 | 140 | 37 | 140 | 255 | 16 | 2500 | 2000 | 7,5 |
| 76 | 140 | 160 | 41 | 160 | 275 | 16 | 2500 | 2000 | 9,5 |
| 89 | 160 | 180 | 53 | 180 | 295 | 16 | 2500 | 2000 | 12,5 |
| 108 | 180 | 200 | 64 | 200 | 315 | 16 | 2500 | 2000 | 20,5 |
| 133 | 225 | 250 | 92 | 225 | 340 | 16 | 2500 | 2000 | 26,5 |
| 159 | 250 | 280 | 126 | 250 | 400 | 20 | 2500 | 2000 | 36,0 |
| 219 | 315 | 355 | 190 | 315 | 460 | 24 | 2500 | 2000 | 50,0 |
| 273 | 400 | 450 | 328 | 400 | 550 | 30 | 3000 | 2000 | 75,0 |
| 325 | 450 | 500 | 424 | 450 | 650 | 40 | 3000 | 2000 | 90,0 |
| 426 | 560 | 630 | 569 | 560 | 750 | 40 | 3000 | 2000 | 120,0 |
| 530 | 710 | – | 778 | 675 | 900 | 40 | 3000 | 2000 | 150,0 |
| 630 | 800 | – | 940 | 775 | 1000 | 50 | 3000 | 2000 | 205,0 |
| 720 | 900 | – | 1182 | 875 | 1100 | 50 | 3500 | 2000 | 235,0 |
| 820 | 1000 | 1100 | 1625 | 975 | 1300 | 50 | 3500 | 2000 | 310,0 |
| 920 | 1100 | 1200 | 1810 | 1075 | 1300 | 60 | 3500 | 2000 | 430,0 |
| 1020 | 1200 | – | 1988 | 1175 | 1400 | 60 | 3500 | 2000 | 470,0 |
Example of a symbol in an order specification:
Fixed dielectric support for a pipe with a diameter of 426 mm, a wall thickness of 7 mm, with
plate dimensions of 750 mm in height and 40 mm in thickness, with type 1 insulation made of polyurethane foam in a polyethylene (galvanized) shell:
Fixed dielectric support St426x7-750×40-1-PPU-PE-D,
Fixed dielectric support St426x7-750×40-PPU-OC-D
Note:
*Maximum load on the support element.
