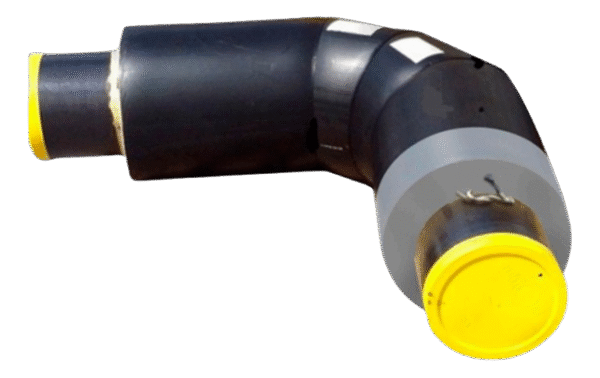

A bend with a MZI and an output cable is a shaped product designed for a smooth change in the direction of the pipeline, as well as for a hermetic connection of copper conductors of the entire pipeline. Copper wires are connected to each other in all products in a continuous circuit by means of terminals of the ODK system through output cables, which are mounted in the end part of the metal insulation plug.
|
d, мм |
Угол отвода – 90˚ | |||||||||
| ПЭ оболочка | ОЦ оболочка | |||||||||
| Тип 1 | Тип 2 |
D, мм |
L1, мм |
L2, мм |
||||||
|
D, мм |
L1,
мм |
L2,
мм |
D,
мм |
L1,
мм |
L2, мм |
m,
кг |
||||
| 3D (R=1,5DN) | ||||||||||
| 32 х 3,0 | 125 | 1000 | 1200 | – | 1000 | 1200 | 13 | 140 | 1000 | 1200 |
| 38 х 3,0 | 125 | 1000 | 1200 | – | 1000 | 1200 | 14 | 140 | 1000 | 1200 |
| 45 х 3,0 | 125 | 1000 | 1200 | – | 1000 | 1200 | 14 | 140 | 1000 | 1200 |
| 57 х 3,0 | 125 | 1000 | 1200 | 140 | 1000 | 1200 | 17 | 140 | 1000 | 1200 |
| 76 х 3,0 | 140 | 1000 | 1200 | 160 | 1000 | 1200 | 23 | 160 | 1000 | 1200 |
| 89 х 4,0 | 160 | 1000 | 1200 | 180 | 1000 | 1200 | 29 | 180 | 1000 | 1200 |
| 108 х 4,0 | 180 | 1000 | 1200 | 200 | 1000 | 1200 | 38 | 200 | 1000 | 1200 |
| 133 х 4,0 | 225 | 1000 | 1200 | 250 | 1000 | 1200 | 49 | 225 | 1000 | 1200 |
| 159 х 4,5 | 250 | 1000 | 1200 | 280 | 1000 | 1200 | 66 | 250 | 1000 | 1200 |
| 219 х 6,0 | 315 | 1000 | 1200 | 355 | 1000 | 1200 | 113 | 315 | 1000 | 1200 |
| 273 х 7,0 | 400 | 1000 | 1200 | 450 | 1000 | 1200 | 153 | 400 | 1000 | 1200 |
| 325 х 7,0 | 450 | 1050 | 1250 | 500 | 1050 | 1250 | 190 | 450 | 1050 | 1250 |
| 426 х 7,0 | 560 | 1100 | 1300 | 630 | 1100 | 1300 | 288 | 560 | 1100 | 1300 |
| 530 х 7,0 | 710 | 1390 | 1590 | – | 1390 | 1590 | 405 | 675 | 1390 | 1590 |
| 630 х 8,0
|
800 | 1420 | 1620 | – | 1420 | 1620 | 439 | 775 | 1420 | 1620 |
| 720 х 8,0 | 900 | 1450 | 1650 | – | 1450 | 1650 | 606 | 875 | 1450 | 1650 |
| 820 х 9,0 | 1000 | 1700 | 1900 | 1100 | 1700 | 1900 | 846 | 975 | 1700 | 1900 |
| 920 х 10,0 | 1100 | 1800 | 2000 | 1200 | 1800 | 2000 | 956 | 1075 | 1800 | 2000 |
| 1020 х 11,0 | 1200 | 2000 | 2200 | – | 2000 | 2200 | 1020 | 1175 | 2000 | 2200 |
| 2D (R=DN) | ||||||||||
| 530 х 7,0 | 710 | 1200 | 1400 | – | 1200 | 1400 | 405 | 675 | 1200 | 1400 |
| 630 х 8,0 | 800 | 1200 | 1400 | –
– |
1200 | 1400 | 439 | 775 | 1200 | 1400 |
| 720 х 8,0 | 900 | 1370 | 1570 | – | 1370 | 1570 | 606 | 875 | 1370 | 1570 |
| 820 х 9,0 | 1000 | 1470 | 1670 | 1100 | 1470 | 1670 | 846 | 975 | 1470 | 1670 |
| 920 х 10,0 | 1100 | 1570 | 1770 | 1200 | 1570 | 1770 | 956 | 1075 | 1570 | 1770 |
| 1020 х 11,0 | 1200 | 1620 | 1820 | – | 1620 | 1820 | 1020 | 1175 | 1620 | 1820 |
Example of a symbol in a custom specification:
Steel elbow with a diameter of 89 mm, a wall thickness of 4 mm, 90˚, with insulation made of type 1 polyurethane foam in a polyethylene sheath, with a metal insulation plug 200 mm long and an output cable:
Elbow St89x4 -90˚-1-PPU-PE-200K with MZI and an output cable
Steel elbow with a diameter of 89 mm, a wall thickness of 4 mm, 90˚, with insulation made of polyurethane foam in a galvanized sheath, with a metal insulation plug 200 mm long and an output cable:
Elbow St89x4-90˚-PPU-OC-200K with MZI and an output cable
Note:
The size from the end of the pipe to the metal insulation plug for steel pipes with a diameter of 219 mm – 70 mm, 110 mm – for pipes of other diameters.
